KNA DB-1 Double Bass Pickup
Free Fast Shipping on this Item ✈️

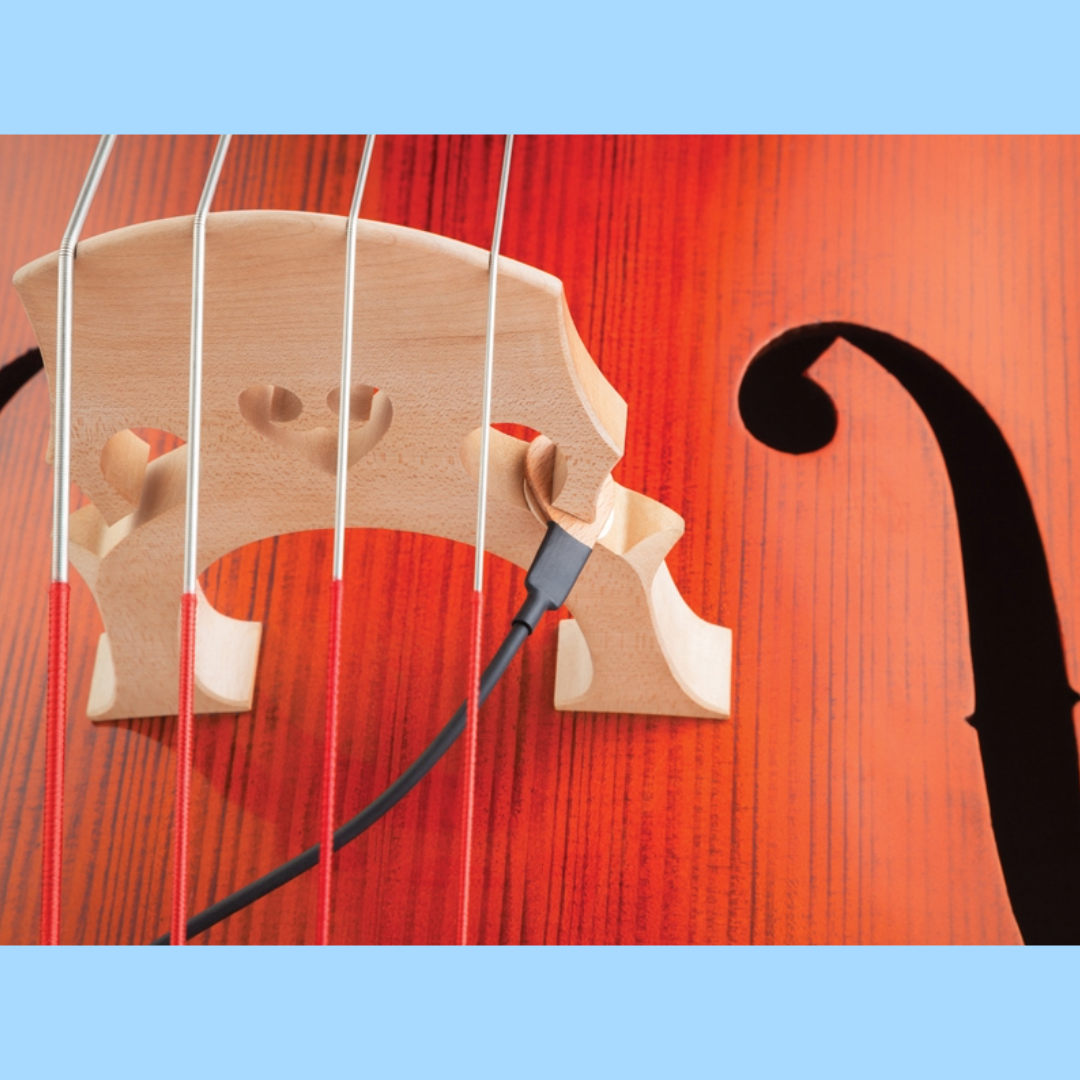

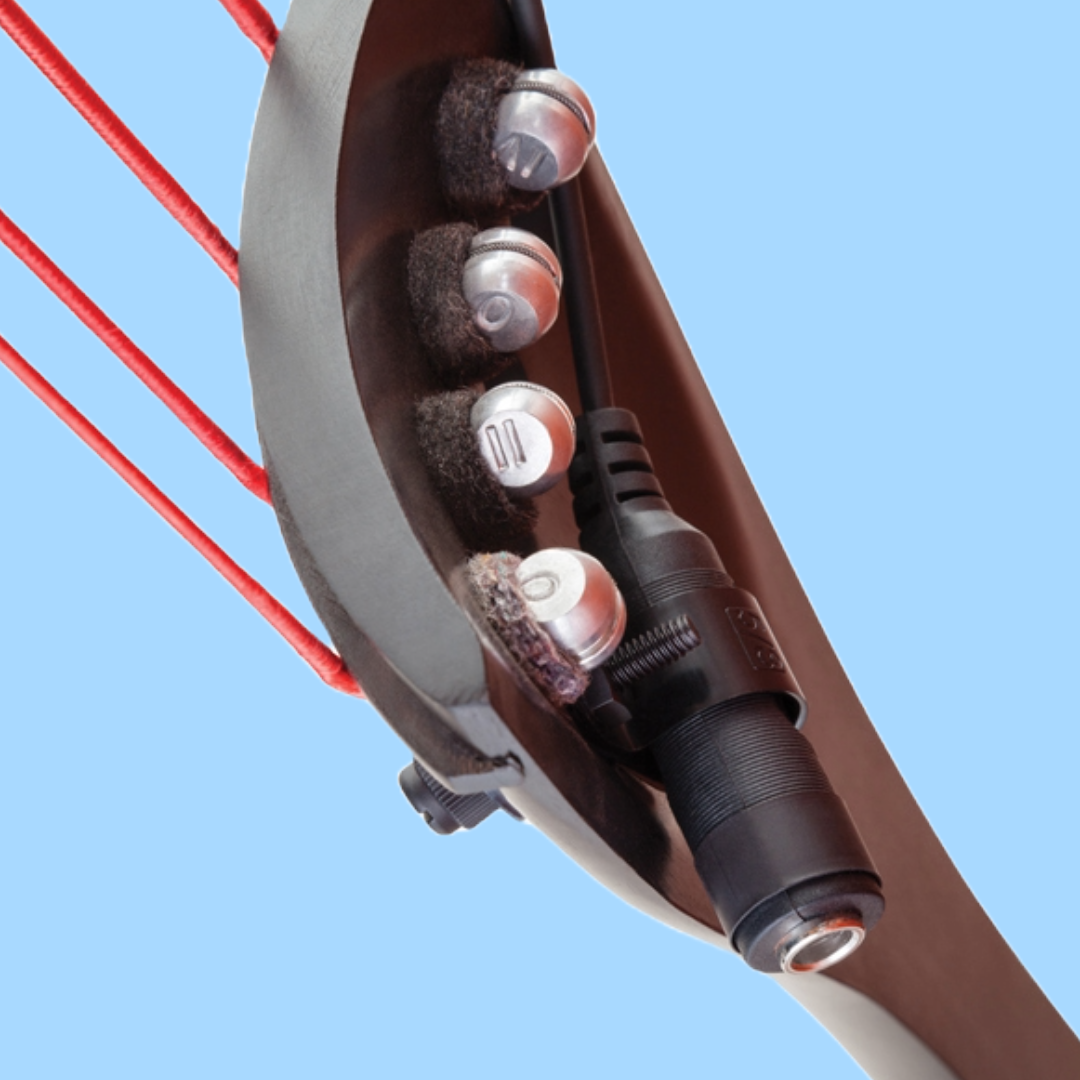

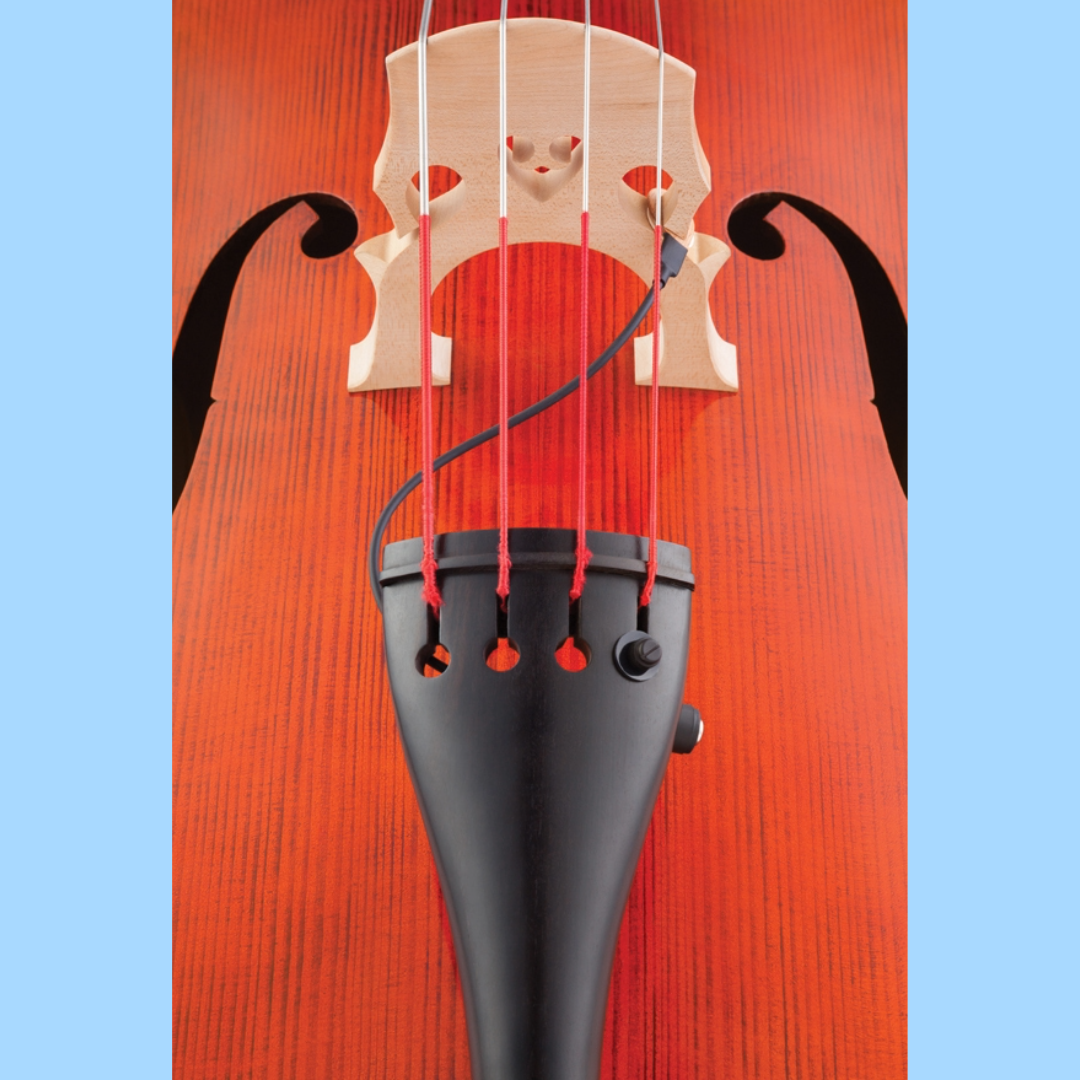

The DB-1 portable bridge-mounted piezo for double bass offers a faithful reproduction of both the broad tone and dynamic range of the instrument without any need for modification. The piezo sensor is easily installed into the eye slot of the bridge where it stays securely held by friction. Additionally, the 1/4" jack housing attaches non-destructively to the tailpiece using a simple screw assembly, ensuring no damage to your instrument.
The sensor itself is encased in lightweight wood, optimizing it for maximum tonal sensitivity and effective sound transmission. This design choice ensures that the natural acoustic sound of the double bass is perfectly captured, maintaining the true character of your instrument. The DB-1's passive design operates without the need for a battery, simplifying its use and maintenance.

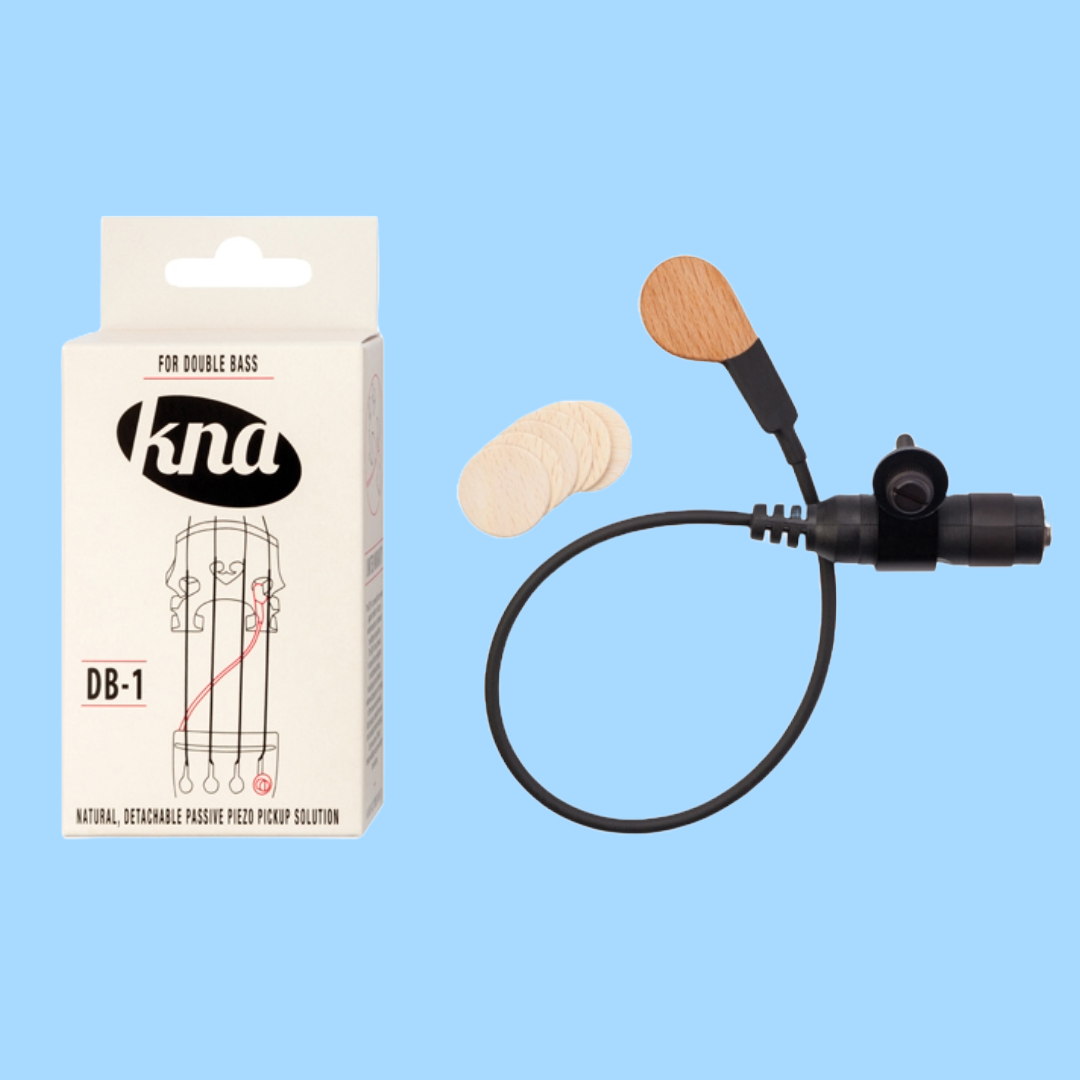

Included in the complete installation set are additional neatly-finished shim discs. These are used to ensure a perfect fit for the sensor, especially in bridges with narrower slots, making the DB-1 a versatile choice for double bass players looking for an easy, reliable solution for amplifying their sound.
| Specifications | |||||
| Wood | White beech | ||||
| Maximum Impedance | 800 Ω | ||||

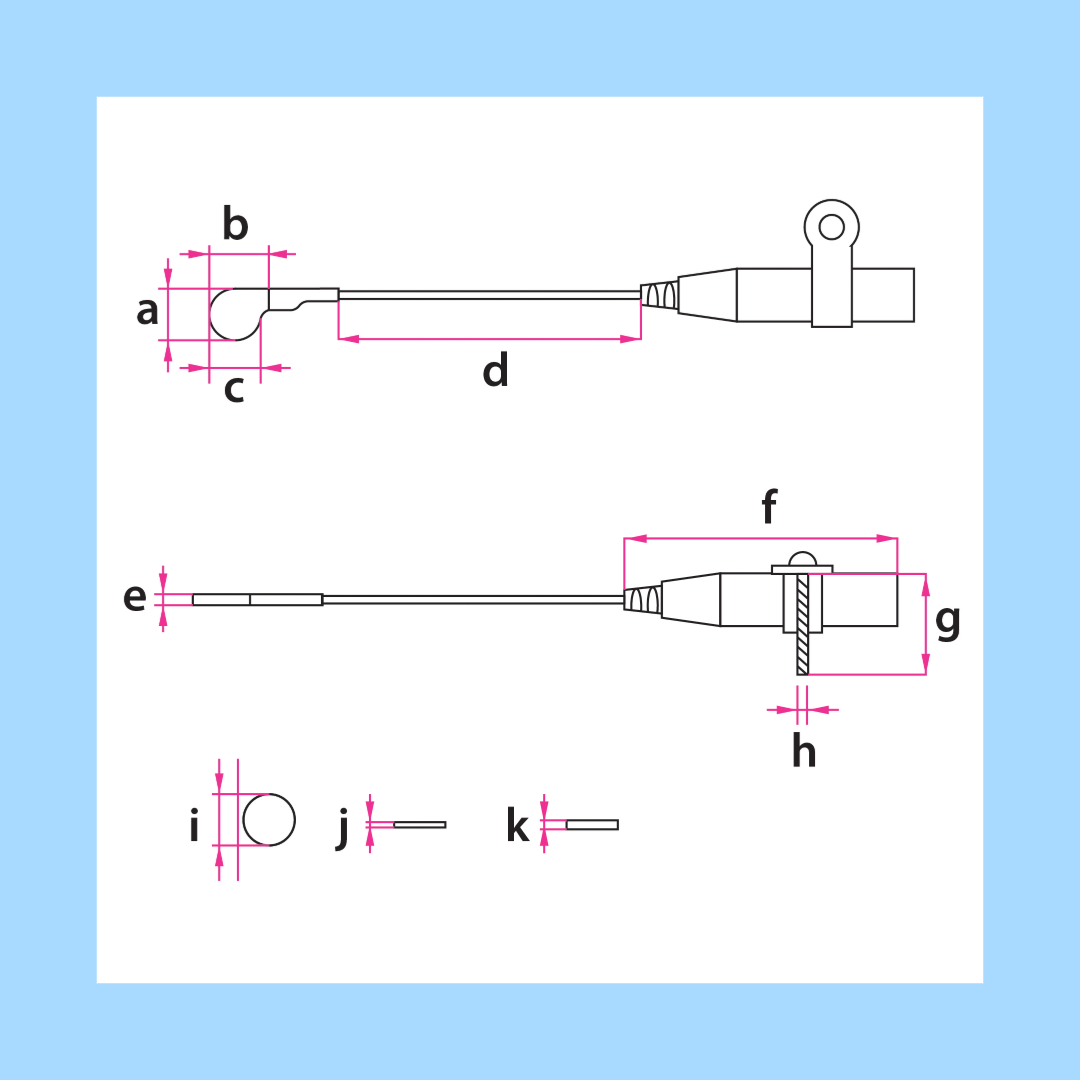

| Measurements | |||||
| Specified part | Letter | Size in MM (from*) | Size in MM (to*) | Size in INCH (from*) | Size in INCH (to*) |
| Pickup sensor side diameter | a | 21,0 | 21,1 | 0,827 | 0,831 |
| Pickup sensor with extention diameter | b | 26,2 | 26,3 | 1,031 | 1,035 |
| Pickup sensor side diameter | c | 21,0 | 21,1 | 0,827 | 0,831 |
| Lead wire length | d | 260,0 | - | 10,236 | - |
| Pickup sensor thickness | e | 2,6 | 2,7 | 0,102 | 0,106 |
| Jack housing length | f | 61,0 | 62,0 | 2,402 | 2,441 |
| Mounting screw length | g | ||||
| Mounting screw width | h | ||||
| Shim diameter | i | 20,0 | - | 0,787 | - |
| Thin shim thickness | j | 0,6 | - | 0,022 | - |
| Thick shim thickness | k | 1,0 | - | 0,039 | - |
